When we look at electronic devices, we see many small parts inside them. These parts are usually called components, and they play an important role in how the device works. Two common types of technologies used to place these components on a circuit board are DIP and SMD. Both have their unique ways of attaching components to a board, but they are different in many ways. Let’s dive into these differences and see what makes each one special.

What is DIP?

DIP stands for Dual In-line Package. It is one of the oldest and most traditional methods of placing electronic components on a circuit board. In this technology, the components have two rows of pins (legs) that go into holes on the circuit board. The pins are then soldered (attached) on the opposite side of the board to keep the component in place.

DIP components are often used in older electronics, and they are easier to handle with simple tools. The pins make it easy for someone to manually insert or remove the parts from the board.

Features of DIP:

• Two Rows of Pins: As the name suggests, a DIP component has two rows of metal pins. These pins are inserted into the holes of the circuit board.
• Through-Hole Technology: DIP is often referred to as through-hole technology because the pins go through the board and are soldered on the opposite side.
• Manual Installation: Because of the large size of the pins, DIP components are easier to handle by hand, which makes them a good choice for older or simpler devices.

What is SMD?

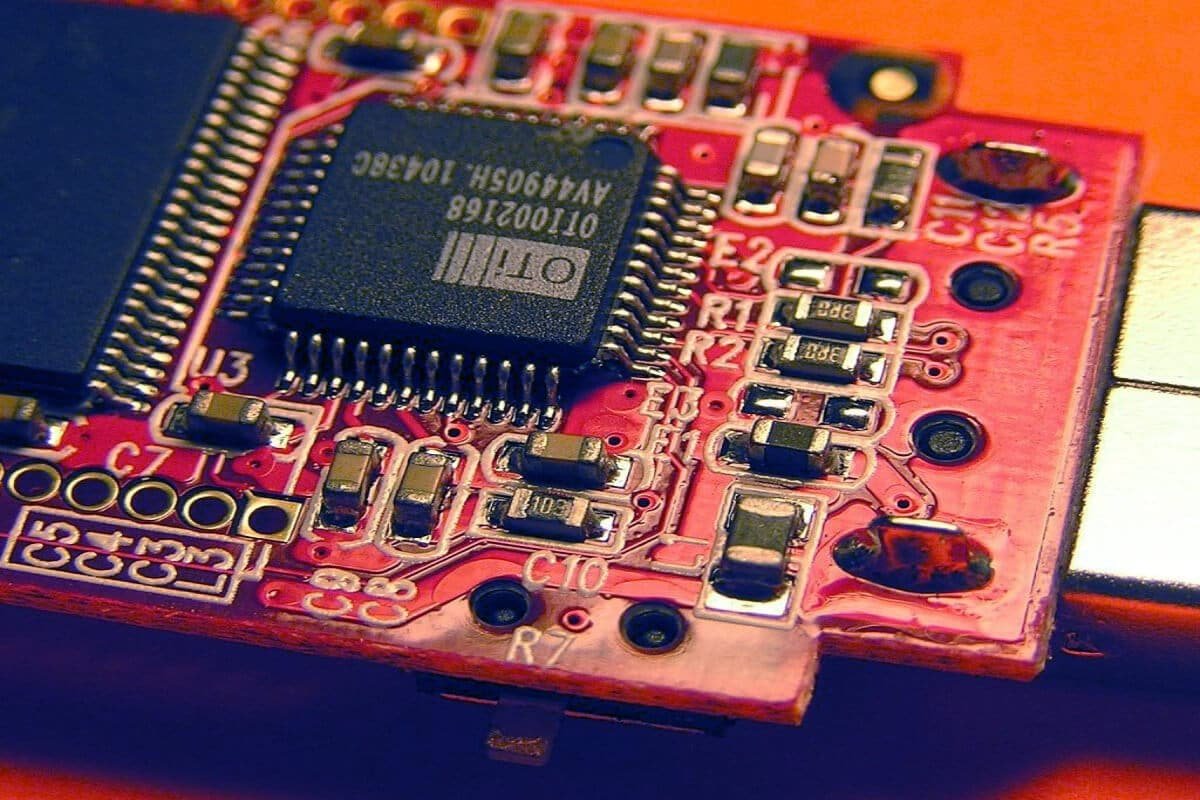

SMD stands for Surface-Mount Device. Unlike DIP, SMD components do not have long pins that go through the board. Instead, these components sit directly on the surface of the circuit board. The small pads on the board hold the component in place, and the component is attached using special machines that place it and solder it to the board.

SMD technology is more modern and is commonly used in today’s electronic devices like smartphones, computers, and tablets. The parts are smaller, which allows the circuit boards to be more compact and efficient. This technology is also widely used in SMD LED screens, where compact and efficient mounting of tiny LED components is crucial for bright and clear displays.

Features of SMD:

• No Pins: SMD components are smaller and have no long pins that go through the board. They are placed directly on the surface.
• Smaller Size: SMD components are much smaller than DIP components, which helps save space on the circuit board.
• Automatic Placement: SMD components are placed on the circuit board by automatic machines, which makes the manufacturing process faster and more accurate.
• More Complex: SMD components are often used in more advanced and modern devices.

The Key Differences Between DIP and SMD

Now that we know what DIP and SMD are, let’s look at the key differences between them.

1. Size of Components

• DIP: DIP components are larger. The long pins make them bulkier, which means they take up more space on the circuit board. This makes DIP technology more suitable for older or less complex devices.
• SMD: SMD components are much smaller and more compact. This allows more components to fit on the same size board, which is important in modern electronics. SMD LED screens, for example, use smaller components to create bright, high-quality displays that are compact and energy-efficient.

2. Installation Process

• DIP: DIP components are usually inserted manually. You can put the component into the holes on the circuit board and then solder it. This is why DIP is easier to use in simple or older electronics.
• SMD: SMD components are placed using automatic machines. These machines can place thousands of components very quickly and accurately. The process is much faster and is commonly used in mass production.

3. Space on the Circuit Board

• DIP: Because of the large size and the pins that go through the board, DIP components take up more space. This means you can’t fit as many components on the board, and the circuit board itself is usually larger.
• SMD: SMD components are smaller, so you can fit many more components on the same size circuit board. This helps make modern devices more compact and efficient. SMD LED screens are a great example of how this small size allows for the creation of large, high-definition displays in compact formats.

4. Durability and Reliability

• DIP: DIP components are usually more durable. Because the pins go through the board, they create a stronger mechanical connection. This is one reason why DIP is still used in some older devices.
• SMD: SMD components can be less durable than DIP because they don’t have the strong mechanical connection that through-hole pins provide. However, SMD components are still very reliable when used in the right conditions.

5. Manufacturing and Cost

• DIP: DIP components are more labor-intensive to install. Since they are usually inserted manually, they take more time and effort. This makes DIP technology less cost-effective for mass production.
• SMD: SMD components are cheaper to produce in large quantities. The automatic machines can place thousands of components in a very short time, which lowers the cost of manufacturing.

6. Repair and Replacement

• DIP: DIP components are easier to repair or replace because they are larger and can be manually handled. If a component is damaged, it’s easier to take it out and replace it with a new one.
• SMD: SMD components are more difficult to repair because they are smaller and more delicate. Special tools and skills are often needed to replace damaged SMD components.

7. Applications

• DIP: Because of their larger size and easier handling, DIP components are commonly used in older devices or in prototypes where manual installation is important. They are also used in certain specialized devices where the extra size is not an issue.
• SMD: SMD components are used in modern electronics such as smartphones, tablets, and computers. Their small size and ease of manufacturing make them ideal for creating compact and powerful devices. SMD LED screens are an example of how this technology allows for thinner, more efficient, and higher-quality displays in many modern devices.

Advantages and Disadvantages

Advantages of DIP:

• Easier to Handle: DIP components are bigger and easier to handle manually.
• Stronger Mechanical Connection: The pins go through the board, creating a stronger connection.
• Ideal for Prototypes: Because DIP components are easy to install and replace, they are perfect for prototyping and testing.

Disadvantages of DIP:

• Takes Up More Space: DIP components are bulkier, which means they take up more space on the circuit board.
• Slower Manufacturing: Installing DIP components by hand takes longer, which increases production time and cost.

Advantages of SMD:

• Smaller and Compact: SMD components are much smaller, which allows more components to be placed on a single board.
• Faster Production: SMD components can be placed quickly by machines, making the manufacturing process faster and cheaper.
• Ideal for Modern Devices: The small size and compact nature of SMD components make them perfect for modern, high-tech devices.
• SMD LED Screens: SMD technology is widely used in SMD LED screens, where the compactness and efficiency of the components allow for bright, clear, and energy-efficient displays.

Disadvantages of SMD:

• Harder to Repair: Because SMD components are smaller, they are more difficult to replace or repair manually.
• Less Durability: The mechanical connection isn’t as strong as with DIP components.

Conclusion

Both DIP and SMD are important technologies in the world of electronics. DIP has been around longer and is easier to handle manually, making it suitable for older devices and prototypes. On the other hand, SMD technology is smaller, more efficient, and is used in most modern electronics today, including SMD LED screens that power the bright, high-definition displays in devices like smartphones and televisions.

When choosing between the two, it depends on what type of device you are working on and the requirements of the project. If you need something compact, fast, and mass-produced, SMD is the way to go. If you need something more durable and easier to repair, DIP might be a better choice. Understanding the difference between these two technologies can help you make the right decision for your electronics project.
